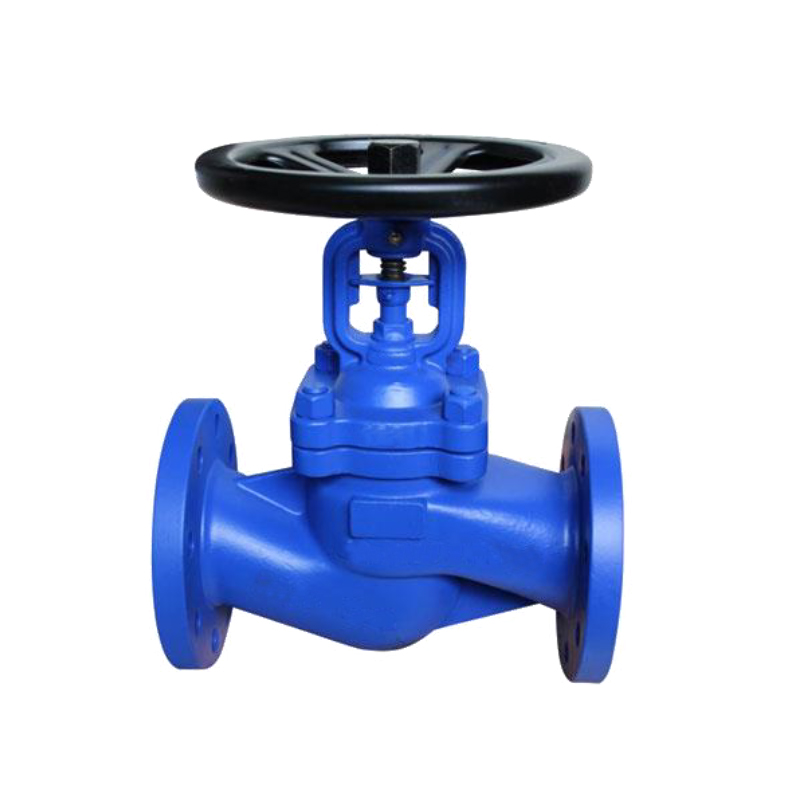

Globe Valve

Globe Valves are linear motion valves primarily designed to throttle or regulate flow, although they can also be used for on/off service. Their design creates a tortuous flow path, resulting in a higher pressure drop compared to gate or ball valves. These specifications cover a range of globe valve designs and materials.

  • Sizes: * 1/2″ to 48″ class ISO to 2500 * 2″ to 12″ class ANSI 2500

Standards:

  • Design: ANSI B16.34, BS 1873, BS 5352
  • Face to Face: ANSI B16.10
  • Flanged Ends: ANSI B16.5, B16.47 or MSS SP-44
  • Butt weld Ends: ANSI B16.25
  • Threading ends: NPT type ANSI B1.20.1
  • Socket Welding ends: ANSI B16.11
  • Test: API-598, API-6D, ANSI 16.34, BS 6755 (pt.1)

Materials:

  • Carbon Steel: ASTM A105, A216WCB, WCA, WCC, A350LF2 & etc.
  • Low Temperature Carbon Steel: ASTM A352 LCB, LCC.
  • High Temperature Alloy Steel: ASTM A217 WC6, WC9, C5, C12, C12A
  • Low Temperature Alloy Steel: ASTM A352 grades LC1, LC2, LC3, LC4, LC9 and etc.
  • Stainless Steel Cast Body: ASTM A351 grades CF3, CF8, CF3M, CF8M, CF8C, CN7M and etc.
  • Stainless Steel Forged Body or Trim: ASTM A182 grades F5, F6a, F11, F22, F44, F51, F53, F55, F304, F304L, F316, F316L, F316Ti, F320, F321, F347 & etc.
  • Brass and Bronze alloys
  • Seats and Seals: PTFE, Glass PTFE, Graphite, Nylon, Viton
