Showing 49–60 of 117 results
-
Shear Stud Fastener
Read more Fasteners-subShear Studs are headed fasteners specifically designed for use in construction to provide shear reinforcement in concrete structures by mechanically anchoring the concrete to steel members. These studs ensure composite action and enhance structural integrity.
- DIN Standard: Construction
- Diameter Range: M6 – M22
- Length Range: 80mm – 250mm
- Grade: 4.8, 8.8, 10.9
- Surface Treatment: Plain
-
Self Drill Screw Fastener
Read more Fasteners-subSelf Drill Screws, manufactured to DIN 7504 standards, are specialized fasteners designed to drill their own pilot hole, tap mating threads, and fasten materials in a single operation. This feature saves time and eliminates the need for pre-drilling.
- DIN Standard: 7504
- Diameter Range: M6
- Length Range: 16mm – 75mm
- Grade: 8.8
- Surface Treatment: Z.P
-
Dry Well Screw Fastener
Read more Fasteners-subDry Wall Screws, manufactured to DIN 18182 standards, are specialized fasteners designed for attaching drywall (gypsum board) to wood or metal studs. Their sharp point and coarse threads allow for quick and secure installation.
- DIN Standard: 18182
- Diameter Range: M6-M6
- Length Range: 16mm – 75mm
- Grade: 8.8
- Surface Treatment: Z.P, Black
-
L-Bolt Fastener
Read more Fasteners-subL-Bolts, manufactured to DIN 2510 standards, are fasteners with an L-shaped bend at one end, designed for anchoring applications in concrete or masonry. The bent foot provides strong resistance to pull-out forces.
- DIN Standard: 2510
- Diameter Range: M6 – M55
- Length Range: According to drawing or sample
- Grade: 4.8, 8.8, 10.9
- Surface Treatment: Plain – Black, Z.P – H.D.G
-
Threaded Rods Fastener
Read more FastenersThreaded Rods, manufactured to DIN 975 standards, are continuous, fully threaded fasteners used for a wide range of anchoring, clamping, and support applications. Their full-length threading allows for versatile adjustments and secure connections.
- DIN Standard: 975
- Diameter Range: M6 – M55
- Length Range: 1 Meter, 3.65 Meter
- Grade: 4.8, 8.8, 10.9
- Surface Treatment: Plain – Black, Z.P – H.D.G
-
Carriage Screw Fastener
Read more FastenersCarriage Screws, also known as coach bolts, are fasteners manufactured to DIN 603 standards, featuring a domed or countersunk head and a square neck that prevents rotation once installed in wood or metal. They are commonly used for securing timber and metal components where a flush finish or tamper resistance is desired.
- DIN Standard: 603
- Diameter Range: M6 – M16
- Length Range: 20mm – 250mm
- Grade: 4.8
- Surface Treatment: Z.P
-
Wood Screw Fastener
Read more FastenersWood Screws, manufactured to DIN 571 standards, are specifically designed fasteners for securely joining wooden materials. Their sharp threads provide strong holding power in wood applications.
- DIN Standard: 571
- Diameter Range: M6 – M16
- Length Range: 30mm – 150mm
- Grade: 4.8
- Surface Treatment: Z.P
-
API Test Flange
Read more API - 6AAPI Test Flanges are specialized components designed to facilitate pressure testing of pipelines and equipment, ensuring system integrity in accordance with API standards. These flanges provide a robust and standardized method for conducting pressure tests.
- Standard Size: 2 1/16” to 21 ¼”
- Pressure: 2000 to 10000 Psi
- Face: RF – FF – RTJ
- Material: AISI 4130 – 4140
- Specification Level: PSL1
-
API Integral Flange
Read more API - 6AAPI Integral Flanges are designed as a single, solid piece, often directly connected to other equipment like valves or vessels, providing enhanced strength and leak resistance in accordance with API standards.
- Standard Size: 2 1/16” To: 21 ¼”
- Pressure: 2000 To: 10000 Psi
- Face: RF – FF – RTJ
- Material: AISI 4130
- Specification Level: PSL1
-

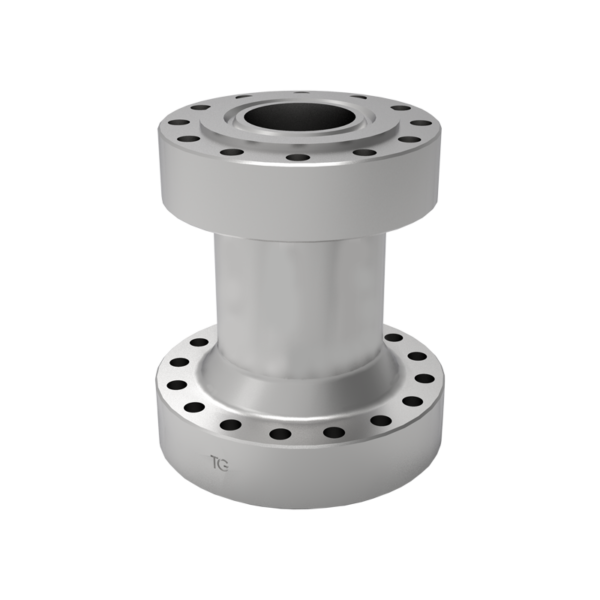

API Spacer Spool flange
Read more API - 6AAPI Spacer Spool flanges are essential components used to create specific distances or provide connections between other flanged equipment in accordance with API standards.
- Standard Size: 2 1/16” To 21 ¼”
- Pressure: 2000 To: 10000 Psi
- Face: RF – FF – RTJ
- Material: AISI 4130 – 4140
- Specification Level: PSL1
-
Test Ring Flange
Read more Non StandardTest Ring Flanges are specialized components designed to facilitate pressure testing in piping systems. These non-standard flanges are manufactured according to specific customer drawings.
Material: ASTM A105 – ASTM A266 – ASTM A350
Description: Manufactured according to customer’s drawings, or Samples.
-
ASME Blind Flange
Read more FlangesASME Blind Flanges are manufactured and stocked in accordance with stringent ASME specifications, ensuring high performance and leak-proof reliability for diverse piping applications.
Available in a comprehensive range of sizes and pressure classes, these flanges provide a dependable and robust solution for effectively isolating and blocking the flow within piping systems.- Standard Size: 1/2” To: 24”
- Class: 150 To: 2500
- Face: RF – RTJ – FF
- Material: ASTM A105 – ASTM A350 – ASTM A694 – ASTM 266 – ASTM A182 F316 – ASTMA 182 F304.
